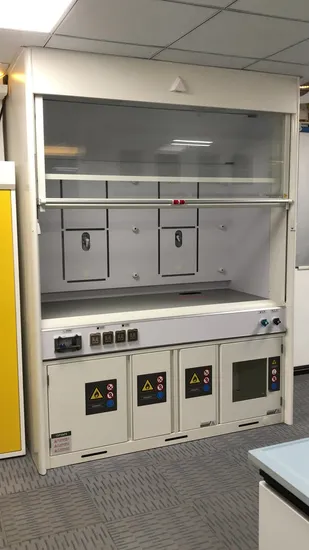

2023 Energy Saving Zero Leakage Fume Hood Ashrae110 Certified Safe Fume Cupboard

Basic Info

Model NO.	JH-FC030
Sash Transmission	Belt Transmission
Water and Gas Fitting	Tof
Worktop	19/25mm Ceramic Worktop with Water-Proof Panel
Cup Sink	High Quality PP Cup Sink
Transport Package	Carton, Wooden Case
Specification	1200/1500/1800x850x2350mm
Trademark	GLORYLAB
Origin	China
HS Code	84149020
Production Capacity	5000sets/Month

Product Description

Model:(JH-FC038)

Safety Performance:



Test data shows Zero Leakage 0.00ppm tested at face velocity 0.5m/s, accordingto ASHRAE110-2016 US standard.

OSHA report released in 1990 revealed a following fact:

The average lifetime of laboratory personnel is 10 years less than that of normal people!

The reason directly refers to: Leakage rate of the fume hood in the laboratory.The real safety index of the fume hood is the leakage rate, not the face velocity! Evolution of leakage rate standard of fume hood:

Standard	Stipulated leakage rate
1985 USA ASHRAE 110-1985	0.5 PPM
1995 USA ASHRAE110-1995	0.05 PPM

Test report:

Advantage:
1. Designed and produced as per ASHRAE110 US standard. Special design of baffle, airfoil andcorner posts etc help form smooth airflow and minimize turbulence, ensure integrated safety andefficiency.2.Particularly designed exhaust canopy on the top of fume hood, made of special fire-resistantmaterial and helps exhaust noxious air effectively and completely.3.With specially designed aluminum alloy handle along with shock absorption strip to extend lifetimeof sash and reduce noise.4. It's equipped with 1 set of counter balance system upgraded from cable to belt transmission,ensuring maximum sash safety and stability. Sash can be lifted up and down freely with force lessthan 0.5KG.5. Strong capability to customize fume hood to satisfy local requirements according to needs ofustomers.5. Both CAV and VAV system available as customers' needs.VAV is designed to reduce at least 30%engery consumption. Auto-sash is available if it's required.

Material Description of steel fume hood:

Size	LxWxH: 1200/1500/1800x850x2350mm, customized size is workable.
Worktop	19mm/25mm epoxy resin worktop with backsplash, lab grade phenolic resin/trespa/ceramic is optional.
Exterior structure	1.0/1.2mm cold-rolled/galvanized steel sheet coated with epoxy resin powder after acid pickling, phosphating,oil and rust removing.
Interior structure	5mm compact/ceramic fiber panel which is chemical resistant and easy to be dismantled.
Sash	5mm toughened safety/anti-explosive glass,height can be adjustable. Sash can be moved horizontally if necessary. Long aluminum alloy handle is applied.
Storage cabinet	Door: double-layers structure with sound absorbing material inside,keeping noise minimum when door is opened or closed. U-shape 128mm 304 stainless steel handle, long aluminum alloy grab handle.
Color	White, gray, blue or specified by customer
PP cup sink	Polypropylene/ceramic/epoxy resin cup sink.
Standard accessories	Fluorescent lamp insulated from gas, LCD controller, TOF safe water&gas remote fitting equipped with pipeline and accessories.cup sink, 4 universal/British/European/water proof socket. electrical leakage protection device.
Optional accessories	300W small centrifugal fan/4 meters PVC flexible pipe, France digital controller with sensor.
Power supply	220/380V,50Hz
Face velocity	0.3~0.7m/s
Noise	<60dB
Diameter of exhaust outlet	250mm
Fluorescent lamp	30W

Lab accessories of fume hood:

Available fan models:

Control panel:
1. LCD control panel which is capable of controlling ON/OFF of fume hood, lamp and fan. Shutdown timecan be set in advance.2. French Digital controller showing face velocity,making alarm when encountering with unproper airflowetc.3. Top quality VAV system to protect safety of operators by keeping constant face velocity when the sashis lifted up or down.

Remark:
1. PP pallets/drawers also can be added in base cabinet connecting with main exhaust ventilation system.2. Duct and a variety of fans are available if required by customers.3. We offer dismantled fume hood with economical strong packing helping customer save transport&packingcost.4. Floor standing/movable/acid storage/Fire proof/drug cabinet etc are available for your option.5. Pls tell us if you have any special requirements.

Sample of fume hood ventilation system:

Installation:
We can offer both assembled and dismantled fume hoods based on customers' needs. If cusotmers are capable of assembling fume hood, we recomend dismantled model because it would help customers to savemuch cost including sea freight and other cost. We can offer installation drawing/guidance/vedio/online helpas assistance.

Packing:
Carton for FCL(full container) goods, wooden case or thick honeycomb carton for LCL goods.We always recomend the best packing type for customers according to order volume&goods size&installationstatus in the principle of cost saving and safety consideration Shipping:
By train/air/sea, LCL or full container as per goods volume&delivery schedule of customers.Container type: 20GP, 40GP, 40HQ.Seaport: Shanghai or any specified port in CHINA.
Production Line:
To ensure excellent craftmanship / product precision / production capacity, our company is equipped witha series of automatic imported/CNC facilities including laser/punching/bending/ caving machine, as well aswelding robot and automatic coating line etc.Our company has become one of the most outstanding enterpri-ses in CHINA who own the most advanced production equipments and huge production scale in our field.

Welcome to contact with us if you are interested in our fume hood,we would offer a qestionaire in orderto know more about your project before recomending right model.
